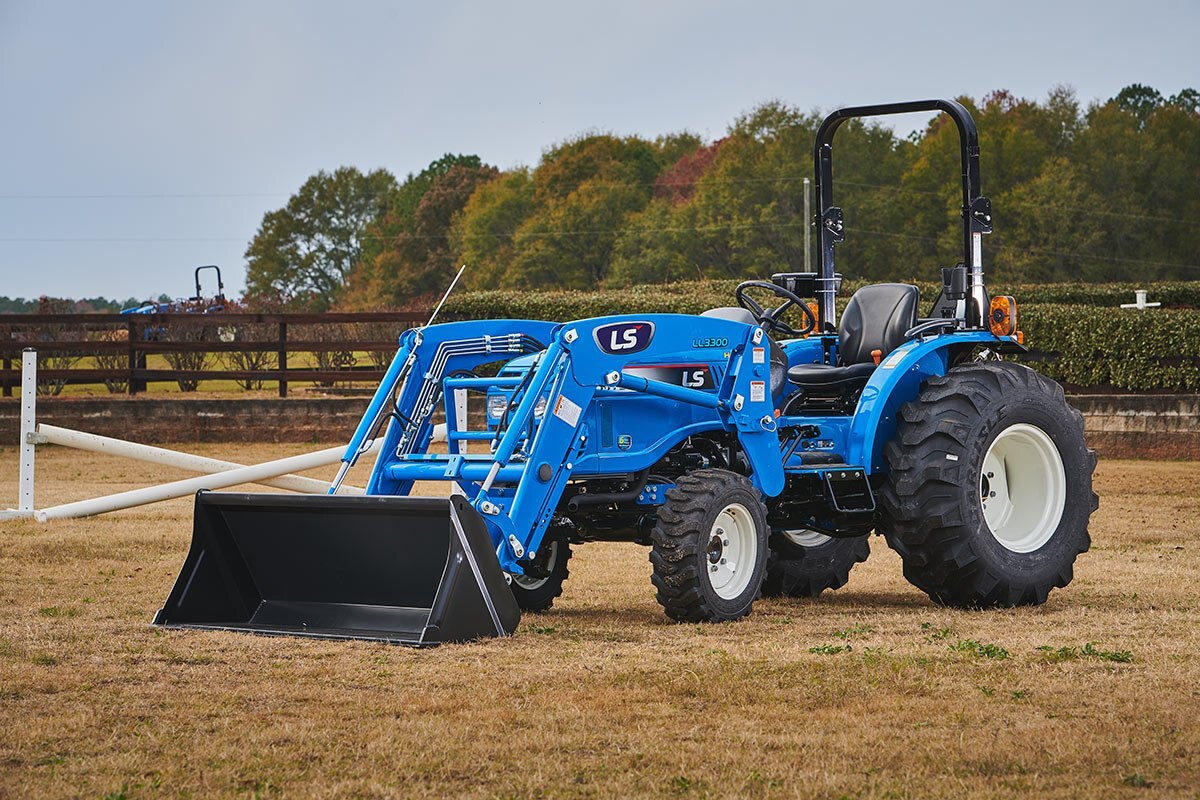

LS Tractor MT225HE Compact Tractors
Call for Price
Overview
Specifications
engine
drive train
pto
hydraulic system
dimension
tire size
options
literature
- 4WD (Front Wheel Mechanical Assist) – Go from 2WD to a 4WD with a simple move of a lever.
- Independent PTO – Easiest PTO to operate that can be turned on or off with a switch.
- Standard 12×12 Synchro Shuttle – Change gears without having to stop. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.
- Side Mounted Main Gear Lever – Maximizes space and makes getting on and off tractor easier than straddle type like other brands.
- Standard Hydrostatic Gear Lever – Makes turning easier, improves control and reduces fatigue.
- Standard Foldable ROPS – Allows Storage in low clearance buildings or sheds.
- Your Choice Of Tires At No Additional Cost – Choose Ag, Industrial or Turf tires at no additional cost. *Subject to dealer inventory.
- 3-Point Hitch – Category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.
- Ergonomically Designed 3-Point Hitch Controls – Easily accessible for maximum comfort and convenience with hydraulic position control.
- Standard Draw Bar – Increases the usefulness of the tractor without the additional optional cost.
- Large Fuel Tank – Provides long operation times between fill ups.
- Standard Rubber Mat – Reduces noise, vibration and prevents slipping.
- Flat Platform And Rubber Mat – Roomy, spacious and comfortable.
- Mitsubishi Tier 4 Engine – Fuel efficient engine delivers reliable performance. Rubber engine mounts reduce operator platform vibration. Standard preheat starting aid improves cold weather starting.
- Easy Open One-Piece Hood – Easy access for maintenance of this low emissions, fuel efficient engine. Standard pre-heat starting aid improves starting in cold weather.
- Modern Ergonomic Design – This compact is ergonomically designed.
- Deluxe Adjustable Seat With Seat Belt – Keeps you in a comfortable and safe position for maximum control.
Model
MT225HE Compact Tractors
Category Name
Tractors
Year
2026
Sale Type
New
Manufacturer
LS Tractor
Total Weight Without Ballast (lbs.)
2,469
Type
3 Cylinder, liquid-cooled, Diesel, NA, IDI
PTO HP
17.2
Model (Tier 4 )
Mitsubishi S3L2
Alternator (V-A)
12V – 50 Amps
Engine HP (Gross)
24.6
Rated Speed (RPM)
2,500
Displacement (cu In.)
80.4
Fuel Tank Capacity (gal)
7.4
Brakes
Wet, Multi-disc
Steering
Hydrostatic Power Steering
No. Of Speeds
3 Ranges
Transmission Type
HST
Type
Independent
Rear, Rpm
540 (Standard)
Remote Valves
Option
Control System
Position
Total Flow (gpm)
12.5
Steering Pump (gpm)
4.6
Category, 3 Pt Hitch
CAT I
Implement Pump (gpm)
7.9
Hitch Lift Capacity, Lbs (Hitch End)
1,808
Wheelbase (in.)
66
Height To Top (in.)
88
Overall Length (Frame To Link, In.)
118
Ag Front / Rear
7 – 14 / 11.2 – 24
VT Front / Rear
27X8.50-15 / 43X16.00-20
IND Front / Rear
27X8.50-15 / 43X16.00-20
Turf Front / Rear
25X8.50-14 / 41X14.00-20
Literature
| Name | Link |
| LS Model Comparison | Download |
