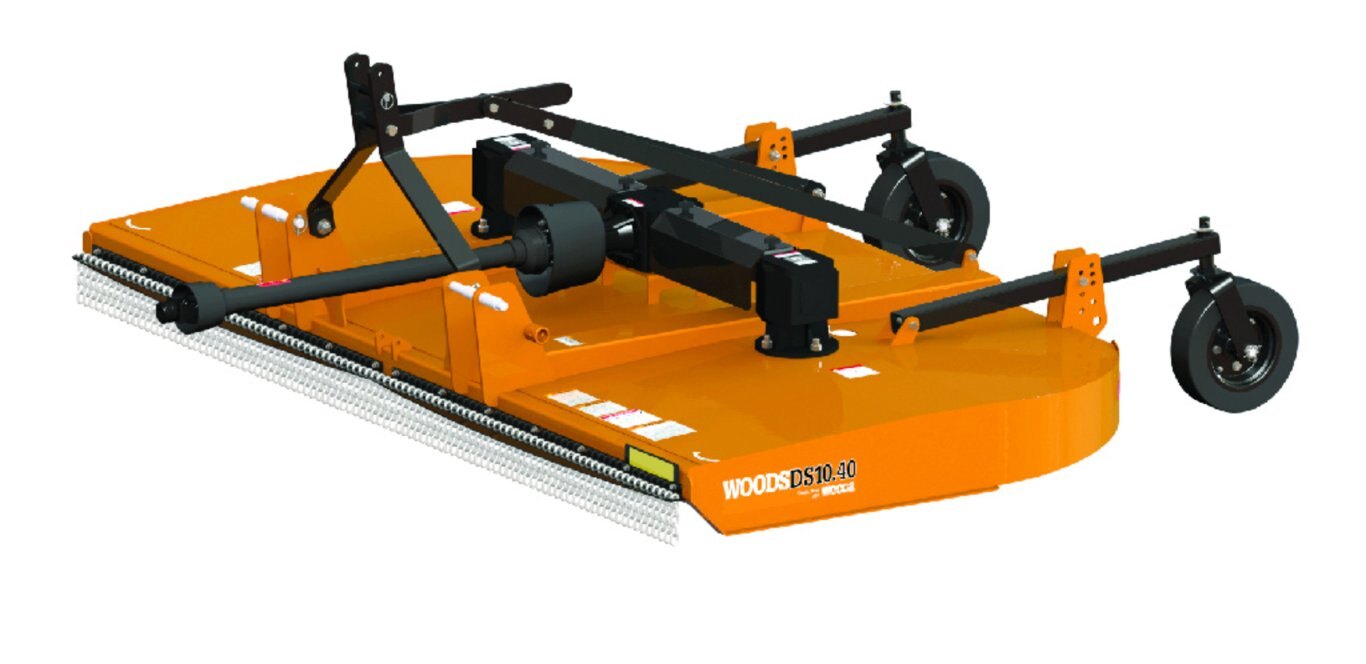

Woods Dual Spindle Cutters MDS10.40

Name: Woods Dual Spindle Cutters MDS10.40
Brand: Woods
Availability: OutOfStock

Call Email

Call for Price

Overview

Easy Connection

Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.

Easy Maintenance

EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required.

Unmatched Gearbox PROTECTION

10-year warranty including parts, labor, and seals.

Specifications

Model

MDS10.40

Category Name

Agriculture

Year

2025

Sale Type

New

Manufacturer

Woods

Hitch

CAT 2 or CAT 3 / clevis

Product Tier

Professional

Weight (lbs)

1,575

Gearbox Rating

120 center, 90 spindle *Gearbox horsepower ratings listed are based on field testing.

Blade Size (in)

.5 x 4

Wheel Selection

Laminated, severe-duty new ag; foam filled new ag, 15" rims

Gearbox Warranty

10 years

Cutting Width (in)

120

Structure Warranty

2 years

Blade Tip Speed (fpm)

16,700

Driveline W/Slip Clutch

CAT 5

Tractor PTO Speed (rpm)

540

Tractor PTO (Minimum HD)

Overall Width/Length (in)

124 x 106

Adjustable Cutting Height (in)

2 – 12

Cutting Capacity Diameter (in)

Deck Side Depth | Thickness (in)

10 deep , .135 thick

additional features

Woods Dual Spindle Cutters MDS10.40

Engineered Quick-Hitch Ready from the factory. No additional hardware is required to use your quick hitch, so you can get in the field and get to work.
PTO Lock Collar (Pull-Type Only) holds lock collar in a pulled-back position for easier tractor connection.
Large Blade Access Window for quick and easy blade maintenance from the top of the deck.
Smooth Sloped Deck easily sheds water and debris.
CV Drive (Pull-Type Only) for less maintenance and smoother operation
