Jaylor Vertical - TMR Mixers 5750 TMR Twin Auger
Call for Price
Overview
Specifications
standard features
features
optional features
Videos
| Model 5750 Trailer TMR mixer comes standard with The Jaylor Square-Cut auger which is the main reason Jaylor mixers outperform all other brands of vertical TMR mixers. Processes and mixes up to two, 5×6 or three, 4×5 round bales per load (3,550 lbs/1,610 kg of hay equivalent). With extension, suitable to feed up to 150 head of dairy cattle, or 185 beef cows, or 740 adult sheep/goats per load per day, depending on ration composition If you’re after the same size in 540 RPM have a look at the 5650 Trailer TMR Mixer. |
Model
Vertical - TMR Mixers 5750 TMR Twin Auger
Year
2022
Sale Type
New
Manufacturer
Jaylor
Height
112in | 284cm
Length
290in | 737cm
Weight
13000lbs | 5900kg
Pto Speed
1000 RPM
Drum Width
91in | 231cm
Minimum Hp
115 HP
Auger Speed
38 RPM
Conveyor Width
36in | 91cm
Standard Tires
15.0/55-17 26 PLY (4)
Wheel Assembly
Dual Oscillating
Floor Thickness
5/8in | 16mm
Number Of Knives
18
Door Opening Width
42in | 107cm
Drum Wall Thickness
1/4in | 6mm
Max Discharge Height
60in | 152cm*
Capacity 12" Extension
740ft³ | 21.0m³
Capacity 16" Extension
780ft³ | 22.1m³
Auger Flighting Thickness
5/8in | 16mm
Standard Features
Square Cut Auger with Sloped TopSquare Cut Auger with Sloped Top |
3 Point Weigh System3 Point Weigh System
|

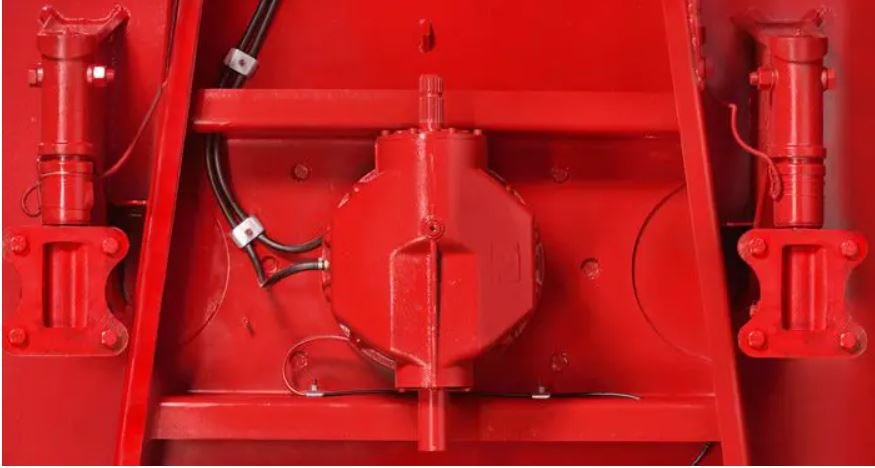

Planetary GearboxPlanetary Gearbox |
Heavy Duty Adjustable Cast HitchHeavy Duty Adjustable Cast Hitch
|
Mix Viewing WindowMix Viewing Window |
Welded Mixing ChamberWelded Mixing Chamber
|
Tungsten Carbide Coated KnivesTungsten Carbide Coated Knives
|
Mixer LevelMixer Level
|
Shaker BoxShaker Box |
2 Restrictor Blades2 Restrictor Blades
|
Reinforced FrameEngineered, Structurally Reinforced Frame with Strain Relief Plate
|

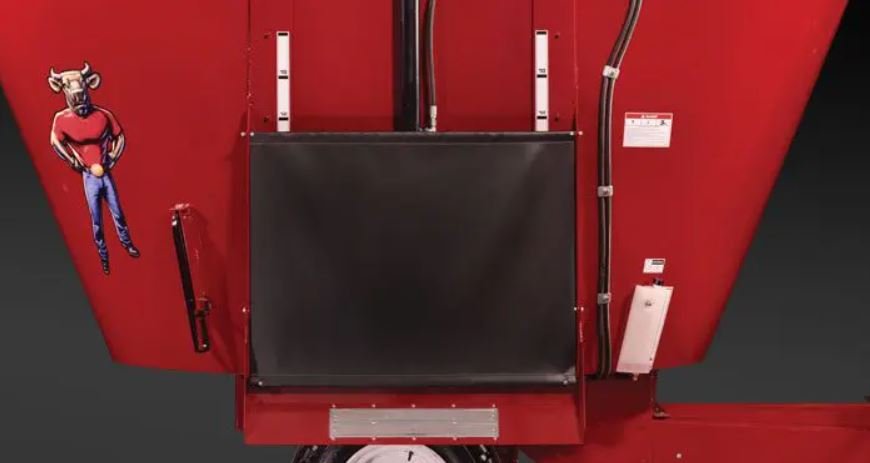

Rapid Discharge DoorRapid Discharge Door
|
Galvanized Discharge ConveyorGalvanized Discharge Conveyor with Quiet, Wear-Resistant Plastic Floor
|
Slide Plate TechnologySlide Plate Technology
|
Heavy Duty HubsHeavy Duty Hubs
|
Ladder and PlatformLadder and Platform
|
Easy View Oil ReservoirEasy View Oil Reservoir
|

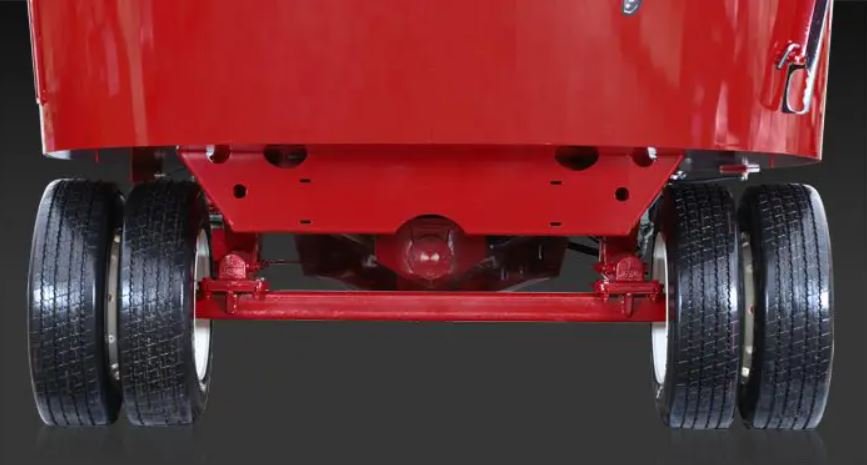

Dual Oscillating AxlesDual Oscillating Axles |
Features
|
Sloped top Square-Cut Auger Rapid Discharge Door with Self-Cleaning Tracks 3-Point Weigh System with DG500 Indicator Patented Open Loop Oil Reservoir Shaker Box to Optimize Your Mix Heavy Duty Dual Oscillating Axles and Hubs Structurally Reinforced Frame Tungsten Carbide Coated Knives Ladder and Viewing Window Standar |
Optional Features
Angling Blade AugerAngling Blade Auger |
WIN SCALE² Indicator UpgradeWIN SCALE² Indicator Upgrade |
TOP SCALE IC Indicator UpgradeTOP SCALE IC Indicator Upgrade |
Cab Remote DisplayCab Remote Display |
Weight Repeater Remote DisplayWeight Repeater Remote Display |
Alphanumeric Remote DisplayAlphanumeric Remote Display |

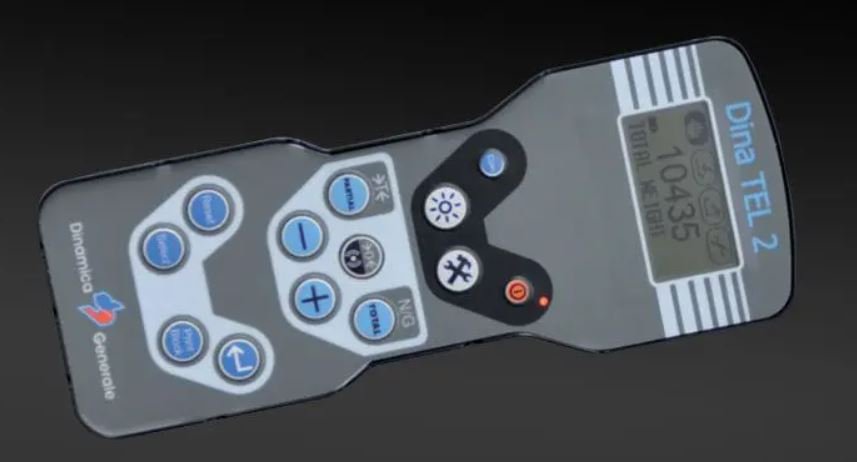

Dina-Tel 2 for Full displayDina-Tel 2 for Full display |
Wi-Net ModemWi-Net Modem |
P2P Major Functions RemoteP2P Major Functions Remote |
Software For Mixer & Feeding ManagementSoftware For Mixer & Feeding Management |
Alexander KnivesAlexander Knives |
Vertical KnivesVertical Knives |
Hay RingHay Ring |
Plastic Extension UpgradePlastic Extension Upgrade |
Rear DoorRear Door |
Corner DoorCorner Door |
Center Side DoorCenter Side Door |
Drop FloorDrop Floor |
3′ Conveyor3′ Conveyor
|
Door ChuteDoor Chute |
Discharge Conveyor, Left or RightDischarge Conveyor, Left or Right |
Dual Discharge Flat ConveyorDual Discharge Flat Conveyor |
Flip-Up ConveyorFlip-Up Conveyor - 41”, 60” or 72” |
Discharge MagnetDischarge Magnet |
Rubber FlapRubber Flap |
Dual Conveyor BootDual Conveyor Boot |
STAD 04 PLUS² Indicator UpgradeSTAD 04 PLUS² Indicator Upgrade
|
FendersFenders |

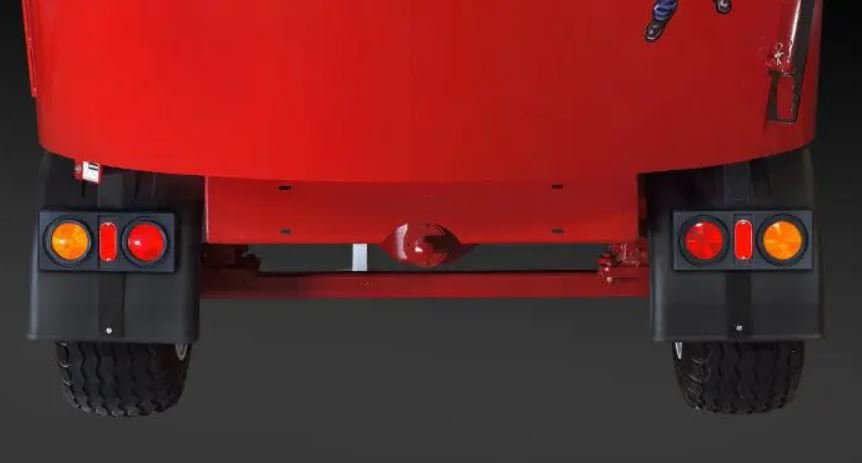

Road LightRoad Light |
Battery MountBattery Mount |
Safety ChainsSafety Chains |
#8 Constant Velocity PTO#8 Constant Velocity PTO |
Mixer Control by Office PCMixer Control by Office PC |
Motor Controller Automate Mixer OperationMotor Controller Automate Mixer Operation |
2 Speed Transmission2 Speed Transmission |
Remote Transmission ShifterRemote Transmission Shifter |
HD axle with Dual Tires 245/70R19.5HD axle with Dual Tires 245/70R19.5
|
