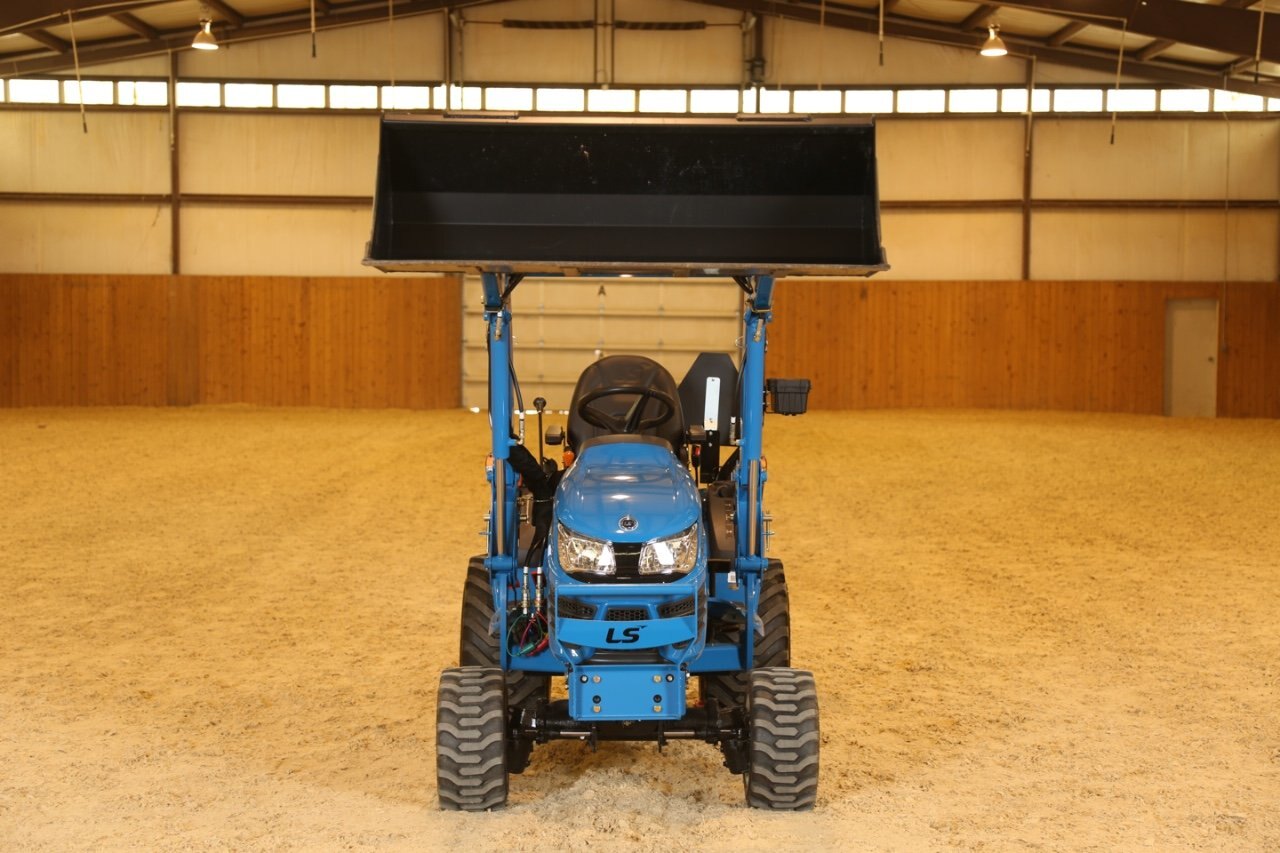

LS Tractor MT125 – 24.7HP

Name: LS Tractor MT125 – 24.7HP
Brand: LS Tractor
Availability: InStock

Call for Price

Get a Quote Get Financed Value a Trade Book a Demo Get Directions Get Directions Print

Overview

Sub Compact

The MT1 Sub-compact incorporates a user-friendly ergonomic design into a robust and quality tractor. The MT1 standard features provide an exceptional operator experience in a variety of applications

Specifications

Model

MT125 – 24.7HP

Year

2022

Sale Type

New

Manufacturer

LS Tractor

PTO HP

17.2 HP

ENGINE HP

24.7 HP

3-POINT LIFT

966 lbs.

LOADER LIFT CAPACITY

1,007 lbs.

features

4WD (FRONT WHEEL MECHANICAL ASSIST)

The MT125-24.7HP Sub-Compact Tractor features 4WD so you can get all your heavy duty pulling with no scuff. Go from 2WD to a 4WD with a simple move of a lever

DUAL PEDAL, 2 RANGE HST

Our MT125 model features the highly preferred dual pedal. Easier and more comfortable than rocker pedals and smoother switch.

INDEPENDENT PTO

Easiest PTO to operate that can be turned on or off with a switch.

PTO SELECTOR SWITCH

Allows you to select the rear-PTO, mid-PTO or both.

STANDARD MID PTO

2000 RPM Mid PTO for optional 60” mid-mount mower or 50” front mount snow blower.

STANDARD HYDROSTATIC POWER STEERING

Ditch the mechanical link—introducing hydrostatic power steering for ultimate flexibility, parts costs, and assemble-ability. This feature makes turning easier, improves control and reduces fatigue.

STANDARD FOLDABLE ROPS

Introducing foldable ROPS for storage allowance in low clearance buildings or sheds.

YOUR CHOICE OF TIRES AT NO ADDITIONAL COST*

Your choice of turf or industrial tires at no additional cost. * Subject to dealer inventory.

3-POINT HITCH

Category 1 with a hitch lift capacity of 970 lbs. is smooth and responsive

ERGONOMICALLY DESIGNED 3-POINT HITCH CONTROLS

Easily accessible for maximum comfort and convenience with hydraulic position control.

EASILY ADJUST MOWING HEIGHT

Adjusting the cutting height for the available 60" mid-mount mower is as easy as turning a dial.

TOOLBOX

Convenient storage keeps tools handy.

YANMAR TIER 4 ENGINE AND EASY OPEN HOOD

Tier 4 engine that provides reliable power and performance. Includes an Easy Open Hood for quick accessibility for easy maintenance.

MODERN ERGONOMIC DESIGN

This small chassis compact is ergonomically designed and stylish.

COMFORTABLE HIGH-BACK SEAT

Supportive and comfortable seat reduces fatigue and reverses position for backhoe use.

specifications

ENGINE

Type: 3-cylinder, Indirect-injection, Water-cooled
Model (Tier 4 ): Yanmar 3TNV80F
Engine HP (Gross): 24.7
PTO HP: 17.2
Rated Speed (RPM): 3,000
Displacement (cu in.): 77.3
Fuel Tank Capacity (gal): 6.6
Alternator (V-A): 12V – 40

DRIVE TRAIN

Transmission: Hydrostatic Drive
No. of Speeds: 2 Ranges
Brakes: Wet, Multi-Disc
Steering: Hydrostatic Power Steering

PTO

Type: Independent
Mid PTO: Standard (2500 rpm)
Rear PTO: Standard (540 rpm)

HYDRAULIC SYSTEM

Implement pump (gpm): 4.6
Steering pump (gpm): 2.1
Total flow (gpm): 6.7
Category, 3 pt hitch: CAT 1
Hitch Lift capacity (lb.): 966 (728 @ 24″)
Lift control type: Position

DIMENSION

Overall length (Bumper to link, in.): 97
Wheelbase (in.): 56
Min. overall width with IND tires (in.): 47
Height to top of ROPS (in.): 87

TIRE SIZE

Industrial Front/Rear: 18×18.5 – 10/26 x 12.0 – 12
Versa Turf Front/Rear: 18×18.5 – 10/26 x 12.0 – 12

WEIGHT

Total weight without ballast (lbs.): 1,444

options

Draw Bar
Rear Remote Valve – 1 Set
Work Light
Detent

attachments

FRONT END LOADER – LL1101

Bucket Size (in.): 50
Maximum Lift Height (@ Pivot Pin) (in.): 72.0
Clearance with Attachment Dump (in.): 48.8
Reach at Maximum Height (in.): 25.2
Maximum Dump Angle (deg.): 46
Maximum Rollback Angle (deg.): 28
Digging Depth (in.): 4.8
Overall Height in Carry Position (in.): 41.5
Lift Capacity (@ Pivot Pin) (lbs.): 966
Breakout Force(@ Pivot pin), lbs.: 2,039
Approx. Weight (Loader w/o Bucket) (lbs.): 364

FRONT END LOADER – LL1100

Bucket Size (in.): 50
Maximum Lift Height (@ Pivot Pin) (in.): 72.0
Clearance with Attachment Dump (in.): 53
Reach at Maximum Height (in.): 21.5
Maximum Dump Angle (deg.): 46
Maximum Rollback Angle (deg.): 28
Digging Depth (in.): 4.7
Overall Height in Carry Position (in.): 41.5
Lift Capacity (@ Pivot Pin) (lbs.): 1,007
Breakout Force(@ Pivot pin), lbs.: 2,083
Approx. Weight (Loader w/o Bucket) (lbs.): 320

BACKHOE – LB1107

Digging Depth (in.): 75.1
Reach from Centerline of Swing Pivot (in.): 114.9
Loading Height (in.): 59.5
Swing Arc (deg.): 135
Transport Height (in.): 74.7
Bucket Rotating (deg.): 169.4
Stabilizer Spread (Down Position) (in.): 78.5
Stabilizer Spread (Up Position) (in.): 53.2
Backhoe Options: Thumb, Big Foot Options, and Rubber Pads
Bucket Digging Force (lbs.): 2,194
Shipping Weight (lbs.): 661

MID-MOUNT MOWER – LM1160

Cutting Width (in.): 60.0
Overall Width (in.): 75.6
Cutting Height Range (in.): 1~4
Deck Shell Thickness (in.): 0.126
Spindle Speed at Rated Engine RPM (rpm): 2,795
Blade Tip Speed (ft./min.): 14,978
Number of Blades: 3
Blade Length (in.): 20.5
Blade Width (in.): 2.48
Blade Thickness (in.): 0.236
Shipping Weight of Base 60” Deck (lbs.): 284.4

SNOW BLOWER – LW3150

Cutting Width (in.): 49.75
Overall Width (in.): 50
Cutting Height Range (in.): 20
Impeller Drive: Chain #40
Auger Drive: Worm Gear
Auger Diameter (in.): 12.75
Impeller Diameter (in): 15.75
Number of Blades on Impeller: 3
Chute Rotation: 3
Hydraulic Shoot Rotation
Adjustable heavy skid shoes: Yes

GRASS CATCHER – MGC1715

Available LS Tractor Model: MT1
Grass Catcher Type: 3 Bag Type
Drive Type: PTO
Category: Commercial
Working Width (in.) Mower Size: 60
Capacity (cu Ft.): 15
Capacity (Bushel): 12
Install Weight (lb.): 276
Shipping Measurement: 72 X 46 X 35
Impeller (Heavy Duty): 4-Blade Steel
Grass Catchers: Handheld Wand Option
Housing (Heavy Duty): Cast Aluminum

GRASS CATCHER – MGC1722 PRO

Available LS Tractor Model: MT1
Grass Catcher Type: 3 Bag Type
Drive Type: PTO
Category: Commercial
Working Width (in.) Mower Size: 60
Capacity (cu Ft.): 22
Capacity (Bushel): 17.6
Install Weight (lb.): 326
Shipping Measurement: 72 X 46 X 53
Impeller (Heavy Duty): 4-Blade Steel
Housing (Heavy Duty): Cast Aluminum

BOX BLADE – MBB3048

Category: 4′ MBB3048 LS Tractor USA Implement
Sides & Mold Board Thickness: 1/4″
Skid Shoes: 1/4″
Lift Attachment Brackets: 1/2″ solid welded
Warranty: 1 year limited
Total Width: 52 3/16″
Overall Height: 37″
Length: 24″
Weight: 389 lbs
Blades: 48″
Tractor Range: 2wd @35HP / 4wd @30HP
3-Point Hitch: category 1

RAKE GRAPPLE – MCG1148A

Attach Type: Dual type (Bobcat & Pin On)
Material: AR400
Weight (lb): 216
Overall width (in.); 49 3/4″
Rake width (in.): 48″
Closed height (in.): 27 5/8″
Jaw opening (in.): 30″
Side width (in.): 21″
Tooth thickness (in.): 0.24″
Number of teeth: 6 Bottom & 5 Top
Hydraulic cylinder: 2″ x 1 – 1/5″ Rod (4″ Stroke)

TILLER – MRT1548A

Tilling Width (in.): 48″
HP: 18~25
Weight (lbs): 377
Tilling depth (in.): 7
Blades B/flange: 6
Blades total (qty): 24
