Zetor Proxima

Call for Price

Proxima Tractors

Universal, reliable and robust perfectly describe Proxima tractors, which rank as the most popular models of the Zetor brand. These machines meet customers' demanding requirements for work in agriculture, forestry and municipal service.

  • The Proxima CL is a popular 80-110 hp tractor. As a standard, the tractor has a basic mechanical gearbox, optionally available with creeper speeds.
  • The Proxima GP has a power of up to 110 hp and features a more modern gearbox with a two-stage torque multiplier.
  • From the Proxima family, the Proxima HS models feature the most modern gearbox solution with an electro-hydraulic reverser (PowerShuttle). The tractors cover the power range from 80 to 120 hp and meet the highest customer requirements for versatility, comfort, safety and productivity.


Zetor Proxima tractors are reliable agricultural machines combining consistent horsepower from the engine and a high-quality gearbox. Therefore they achieve high performance in any situation.


Their simple, robust construction makes Proxima models reliable in even the heaviest conditions. Zetor tractors are designed in such a way to ensure that a long life is assured.

Total Cost of Ownership

By combining versatility and low operating costs, the Proxima family’s models are efficient and economical to own. Proxima Tractors

Sale Type


MODEL UNITS Proxima CL Proxima GP Proxima HS
80 90 100 110 80 90 100 110 80 90 100 110 120
Type - Stage III B
Max. / Rated power (EC R120) kW 55.6 64.4 70.4 78.4 55.6 64.4 70.4 78.4 55.6 64.4 70.4 78.4 86.2
Max./Rated power (EC R120) HP 75.6 87.6 95.7 106.6 75.6 87.6 95.7 106.6 75.6 87.6 95.7 106.6 117.2
Rated speed rpm 2,200

No. of cylinders / valves

- 4 / 16
Displacement cm3 4,156
Max. Torque  Nm 334.8 364.4 428.4 449.4 334.8 364.4 428.4 449.4 334.8 364.4 428.4 449.4 493
Torque Rise
% 35 38 46 40 35 38 46 40 35 38 46 40 37
Type - Reversing 6-stage
with 2 ranges
Reversing 4-stage
with 2 ranges
Number of gears (F/R) - 12/12 16/16 24/24
Reverser - Mechanical (SynchroShuttle) Electrohydraulic (PowerShuttle)
Multiplier - - 2-stage (PowerShift) 3-stage (PowerShift)
Clutch Button - - Clutch button located on the shift lever (PowerClutch)
Max. speed km/h 30 or 40 40
Type - Independent and ground speed Independent and ground speed, wet multi-plate clutch
Rear PTO revolutions  rpm 540/1,000 or 540/540 E
Type - Mechanical with regulation
Gear pump capacity l/min 50 or 6 OPT
Rear hydraulic remotes (Quickcouplers) - 4+1 or 6+1  OPT

4+1 or 6+1 OPT or 8+1  OPT (only with EHR)

Control - Mechanically controlled (MHR) Mechanically controlled of electro-hydraulics Bosch OPT with HitchTronic (EHR)
Type - Category II
Max. lift capacity kN 46
Lifting capacity in full range kN 39.7
Driver's seat - Mechanically suspended with safety belt or Pneumatically suspended with safety belt OPT
Passenger Seat - Standard (with automatic safety belt)
Heating / Air-Conditioning - Standard / Optional
Steering wheel - Fixed or adjustable (tiltable and telescopic) Adjustable (tiltable and telescopic)
Drive system - 4WD
Operating brakes - By connecting front driven axle (for 30 km/h) or Independent hydraulic wet four wheel brakes (for 40 km/h) Independent hydraulic wet four wheel brakes
Fuel tank l 150 190
Front mudguards - Standard
Operating Weight 1   kg 3,930 - 4,550 3,960 - 4,550 4,130 - 4,550
Max. technically permissible weight kg 6,500
Lenght* / Width** / Height  max. mm 4,718 / 2,085 / 2,900 4,738 / 2,085 / 2,900 4,852 / 2,085 / 2,900
Length / Width / Height min. mm 3,605 / 1,899 / 2,760
Wheelbase mm 2,308 2,328 2,442

Other optional equipment: Front PTO, front 3PH with front hydraulic remotes, Trailer brakes (pneumatic 2+1 hoses or hydraulic & pneumatic 2+0 hoses), Radio, Heated Mirrors and Rear Window, Working Lights, Beacons, Wheels. PTO Optional, ¹ Without front and rear ballast. * Max. Lenght with front 3PH and front ballast, ** Max. Width with folded mirrors

ZETOR TRACTORS a.s. reverses the right to change the data and information published in this website without previous notification. ZETOR TRACTORS a.s. is not liable for issues arising from any potentially faulty information published in this website.


Suzuki 2022 Hayabusa Engine
Powerful with low consumption

Zetor Proxima Tractors are equipped with economical and powerful engines that meet the latest and strictest Stage III B. The engine construction is always adapted to the specific model, which guarantees low fuel consumption, optimum performance and long service life.

76-117 HP

The optimized engine combustion leads to a lower heat load, lower consumption and higher pulling power

  • Power 76-117 hp
  • Optimized engine combustion characteristics lead to a lower heat load, lower consumption and higher pulling power.
  • Drivers will appreciate the very good acceleration and easy starting of the engine, even at low temperatures.
  • The tractor does not need urea to meet the Stage IIIB emission standard.
  • The high quality of the engine guarantees long life.
  • Excellent torque rise allows the engine to operate at low speeds with high loads, and without the need of frequent gear shifting.
  • There’s no artificial power boost. Zetor engines do not have a so-called Powerboost function, so full power is available under all conditions.

Suzuki 2022 Hayabusa Gearbox
High endurance and long life

The higher number of usable gear ratios keeps the engine at the optimum speed both when working in the field and during transport. This also helps keeps the fuel consumption low.

  • Zetor develops and manufactures its own gearboxes using high-quality materials to guarantee a long life.
  • The availability of more gearbox variants allows customers to select the suitable solution best matched to their needs.
  • Ground speed PTO in standard.

Proxima CL

The standard synchro shuttle has 12 forward and 12 reverse speeds.

The creeper gearbox option has 20 forward and 4 reverse speeds. The lowest travel speed is 0.22 km/h (at the engine rated speed of 2,200 rpm).

Proxima GP

Four-speed gearbox with two-stage multiplier and mechanical reverser. 16 forward and 16 reverse speeds.

Proxima HS

Four-speed gearbox with three-stage multiplier (PowerShift) and hydraulic reverser (PowerShuttle): 24 forward and 24 reverse speeds.

Making the tractor operation easier


Clutch button on the gear shift lever



Three-stage torque multiplier with automatic


PowerShuttle function

Hydraulic reverser


Suzuki 2022 Hayabusa HYDRAULICS
Reliable operation in all directions

For comfortable work with implements, Proxima tractors are equipped with up to a 4-part external distributor. The rear three-point hitch is optionally available with electro-hydraulic control (EHR) with the HitchTronic function.

  • Maximum lifting force 46 kN
  • Additional quick couplers with 2-4 outlets
  • Mechanical lock in the end position of the distributor (sections without kick-out)
  • Speed control for lowering of the three-point hitch
  • External control of the lower link arms
  • Full-flow filter on the hydraulic pump inlet
  • Optional BOSCH EHR

Suzuki 2022 Hayabusa HitchTronic

The unique HitchTronic system received a number of professional awards after it was put on the market. It provides automatic regulation of the rear three-point hitch. When using this system, it is not necessary to adjust the different types of regulation and their sensitivity. HitchTronic automatically measures the soil resistance itself and regulates the three-point hitch adjustment according to the current values.

5-7 %

The HitchTronic system increases labour productivity and, at the same time, reduces fuel consumption by 5 to 7% .

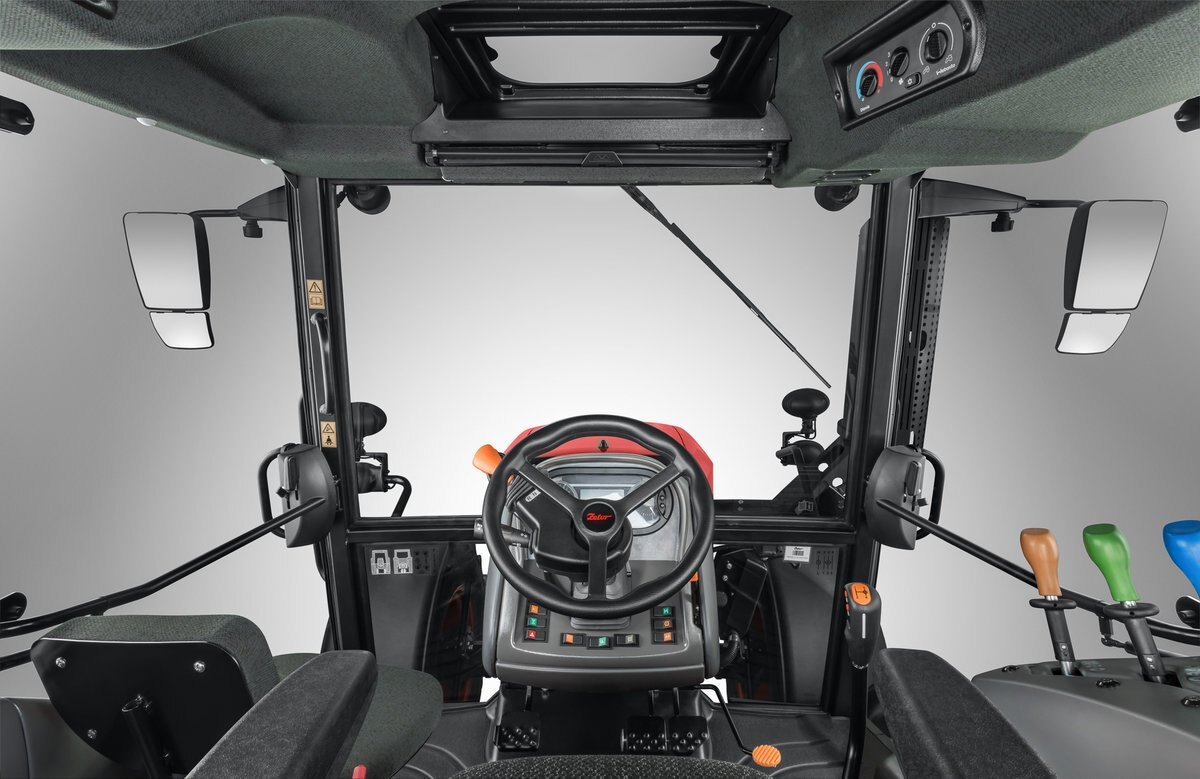

Comfort and convenience

The cabs of Proxima tractors are spacious, comfortable and are designed to provide the maximum safety for the driver. All information on the tractor's operation is displayed on the digital dashboard. The controls are located in the cab to maximize the ergonomics and to ensure intuitive operation of the tractor. The driver has all controls comfortably at hand, which makes the operation safer and more comfortable. Two types of cab roof hatches are available for Zetor tractors (optionally with reinforced sight glass for work with a front loader).

  • Ideal view from the cab in all directions
  • Spring-suspended, ergonomic driver's seat
  • Co-driver's seat
  • Clear and logical arrangement of the dashboard – important information in one place
  • Ergonomic and intuitive control, the controls are immediately at hand
  • Height- and reach- adjustable steering wheel
