Landini Powerfarm
Call for Price
Overview
Specifications
models
dimensions and weights
synchro shuttle transmission
standard modular transmission
tier 3 perkins 1104d series engines-more power with better fuel economy
Documents
|

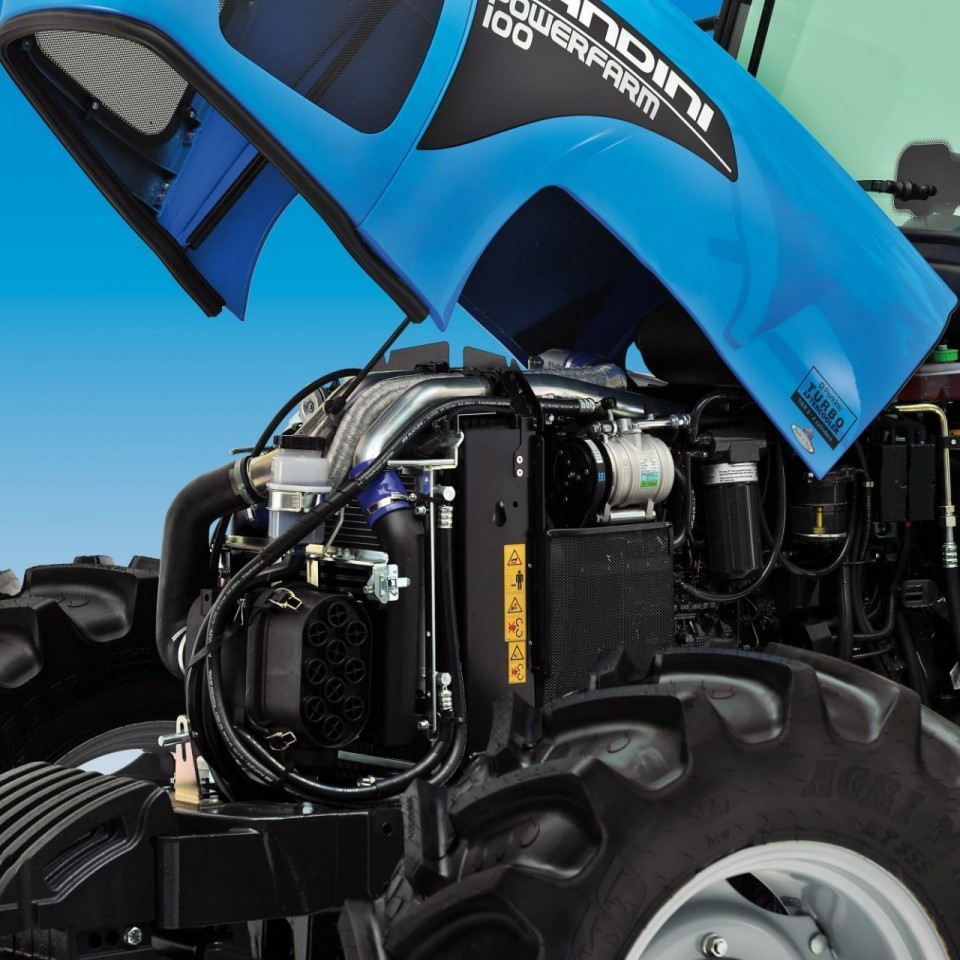

Powerfarm: the essence of modernity The new Powerfarm series is a range of simple and modern tractors. Available in both platform and cab versions, the Powerfarm tractors are powered by ecofriendly, fuel-efficient Perkins 1104D engines that deliver 83, 92.5 and 102 hp/ISO and meet the Tier 3 emission regulations. Featuring an advanced fuel injection system that optimizes air-fuel mixture and enhances combustion efficiency, these engines combine high power and torque levels with low running costs. The Powerfarm 110 is also available in a turbocharged version powered by a Tier0 1104-44T engine that develops 106.8 hp/ISO. The hood, fully restyled to reflect the new family styling, provides unobstructed view in all directions and opens wide to provide easy access to the engine compartment for service and maintenance. The synchro shuttle transmission offers four gears in three ranges providing 12 speeds forward and 12 reverse. A 30 km/h transmission is available with either an underdrive (standard on the 2WD version) or a creep speed option. An overdrive option with 40 km/h maximum speed is also available for the 4WD models. |
|
Offering a wide choice of models and versions the Powerfarm range is designed for productivity, versatility and comfort. The Powerfarm also offers a high-clearance version (HC) for both the two- and four-wheel drive models. Rotating the rear drop-down final drives and using special front axles and tall, narrow tyres result in higher belly clearance, making this tractor ideal for working in specialty crops such as rice fields and inter-row crops. The fully-glazed Total View cab with its roof-mounted air conditioning system and logicallyarranged controls offers the operator a functional and comfortable working environment for maximum ease of operation. |
|

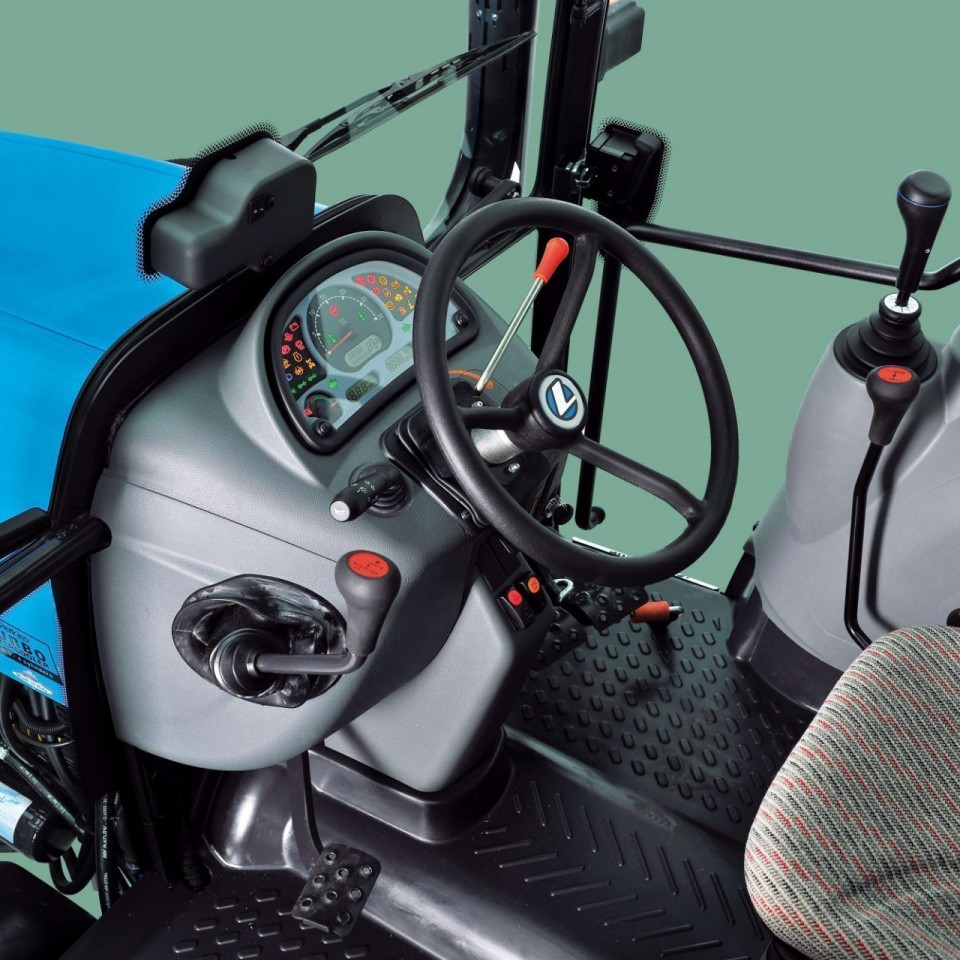

“Total View” cab for all-round visibility The fully-glazed Total View cab with its roof-mounted air conditioning system and logicallyarranged controls offers the operator a functional and comfortable working environment for maximum ease of operation. Offering a wide choice of models and versions, the Powerfarm range is designed for productivity, versatility and comfort. |
Model
Powerfarm
Year
2021
Sale Type
New
Manufacturer
Landini
Power
83, 92.5, 102, 106.8
Engine
4,4 / 4
Transmission
Mechanical Reverse Shuttle and Speed Four
Models
|
POWERFARM
110 STD |
POWERFARM
90 STD HC |
POWERFARM
100 STD HC |
POWERFARM
110 STD HC | |
|---|---|---|---|---|
| Engine | TIER O | TIER 3 | TIER 3 | TIER 3 |
| Perkins direct-injection engine | 1104A-44T | 1104D-44T | 1104D-44TA | 1104D-44TA |
| max. power (ISO), hp/kW | 106.8/78.5 | 83/61 | 92,5/68 | 102 / 75 |
| max. torque, Nm | 400 | 352 | 363 | 416 |
| displacement, cm3 | 4400 | 4400 | 4400 | 4400 |
| nr. of cylinders | 4 Turbo | 4 Turbo | 4 turbo aftercooler | 4 turbo aftercooler |
| fuel tank capacity, Lt | 102 | 102 | 102 | 102 |
Dimensions And Weights
|
POWERFARM
110 (T0)STD |
POWERFARM
90STD HC |
POWERFARM
100STD HC |
POWERFARM
110STD HC | |
|---|---|---|---|---|
| Front tyres | 12.4-24 | 12.4-24 | 12.4-24 | 12.4-24 |
| Rear tyres | 18.4-30 | 18.4-30 | 18.4-30 | 18.4-30 |
| A length (with ballast), in. (mm) | 163.8 (4160) | 162.8 (4136) | 162.8 (4136) | 163.8 (4160) |
| B min. width, in. (mm) | 81.2 (2063) | 81.2 (2063) | 81.2 (2063) | 81.2 (2063) |
| C wheelbase 2WD/4WD,(mm) | 2365/2340 | 2341/2316 2255/2230 | 2341/2316 2255/2230 | 2365/2340 2255/2230 |
| D height over cab, in. (mm) | 100.4 (2550) | 100.4 (2550) | 100.4 (2550) | 100.4 (2550) |
| E ground clearance 4WD, in. (mm) | 17.8 (453) | 17.8 (453) | 17.8 (453) | 17.8 (453) |
| weight 4WD (w/o ballast) + 150kg cab.(kg) | 3450 | 3330 3460 | 3330 3460 | 3450 3500 |
Synchro Shuttle Transmission
|
|
The synchro shuttle transmission offers four gears in three ranges providing 12 speeds forward and 12 reverse. A 30 km/h transmission is available with either an underdrive (standard on the 2WD version) or a creep speed option. An overdrive option with 40 km/h maximum speed is also available for the 4WD models.
Standard Modular Transmission
|
|
The Super T0-T2 tractor range features as standard a modular transmission with four gears in three ranges offering 12 forward and 4 reverse speeds. The standard gearbox can be optionally equipped with a steering-column synchro shuttle to provide 12 forward and 12 reverse speeds. An optional creeper with four creep speeds provides a total of 16 forward and 16 reverse gears and enables ground speeds as low as 320 m/h.
Tier 3 Perkins 1104d Series Engines, More Power With Better Fuel Economy
|
|
The Powerfarm tractors are powered by ecofriendly, fuel-efficient Perkins 1104D engines that deliver 83, 92.5 and 102 hp/ISO and meet the Tier 3 emission regulations. Featuring an advanced fuel injection system that optimizes air-fuel mixture and enhances combustion efficiency, these engines combine high power and torque levels with low running costs. The Powerfarm 110 is also available in a turbocharged version powered by a Tier0 1104-44T engine that develops 106.8 hp/ISO.
4-pagine-powerfarm-extra-ue-2017-ok-cpy-2.pdf Model
Powerfarm
Year
2021
Sale Type
New
Manufacturer
Landini
Quantity
0
Power
83, 92.5, 102, 106.8
Engine
4,4 / 4
Transmission
Mechanical Reverse Shuttle and Speed Four
