The New incoming

Landini Multifarm is the NEW incoming in the medium-low power range product. 4 cyl 4,4L Perkins engine equips all the models,with two different inlet systems,Naturally Aspired and Turbo. The power range starts from 68 to 82 HP with a very good choice of specifications.

Strength, reliability and versatility

Strength, reliability and versatility are the key points in order to realize high performance in several farming operations like: soilpreparation, grassmowing, baling, orchard, loading and transport.

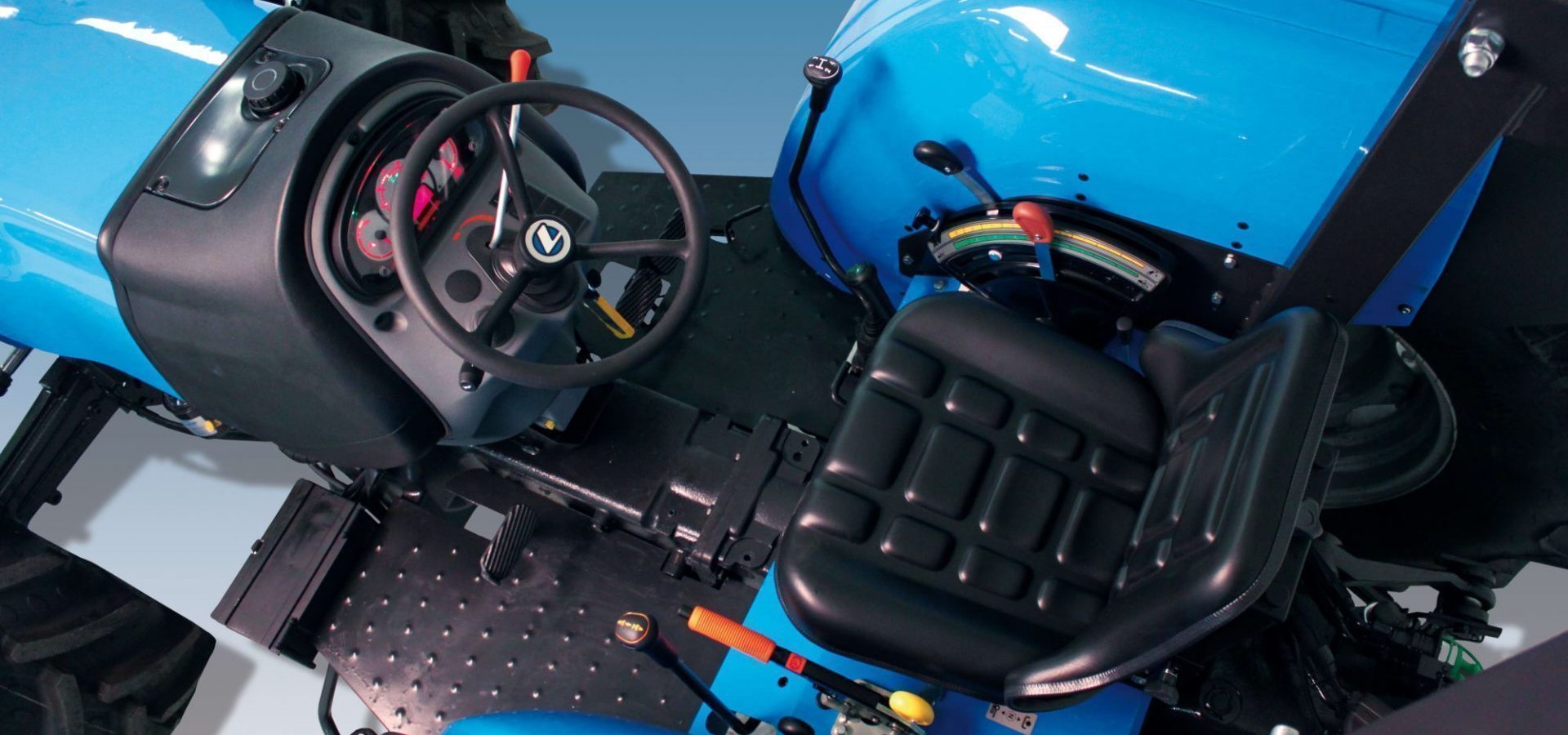

Platform

Tiltablesteering adjuster

Ergonomic levers position

Safety frame locked
Good rear mirror visibility
Rear mirror support out of operator area

Levers close to seat for friendly use

Specifications

Model

Multifarm

Year

2021

Sale Type

New

Manufacturer

Landini

Power

68.2, 74.1, 82

Engine

4,4 / 4

Transmission

Mechanical Reverse Shuttle and Speed Four

models

	Multifarm 75	Multifarm 80	Multifarm 90
Perkins Engine	1104C-44 (Tier2)	1104D-44 (Tier3)	1104D-44T (Tier3)
Max Power (ISO) HP/kW	68,2 / 50,2	74,1 / 54,5	82 / 62,3
Rated speed Rpm	2200	2200	2200
Max. Torque Nm	273	292	352
Max. Torque speed Rpm	1400	1400	1400
Bore/Stroke mm	105/127	105/127	105/127
Displacement cm³	4400	4400	4400
Nr. of cylinders / turbo	4 / NO	4 / NO	4 / YES
Compression ratio	18,2:1	18,2:1	18,2:1
Fuel tank capacity STD+OPT Lt	65	65	65

hydraulic system

Tandem pumps
42 for service [litres/min]
20 for steering [litres/min]
1 spool valve in base
Max 2 spool valves (1 option)

dimensions and weights

	Multifarm 75	Multifarm 80	Multifarm 90
Total lenght whitout / whit front weights mm	3742 / 4145	3742 / 4145	3742 / 4145
Wheelbase (4WD) mm	2130	2130	2130
Height to safety frame mm	2391 / 2441	2391 / 2441	2391 / 2441
Ground clearance mm	318 / 368	318 / 368	318 / 368
Minimum width (Tyres 14.9 R28) mm	1645	1645	1645
Weight 4WD (Whithout Ballast) Kg	2860	2860	2860

mechanical transmission made in italy

Synchro shuttle 4 gears / 3 ranges 12 + 12 in base, 16 + 16 with creeper (Option)

Available working speeds:

5 speeds between 4 and 12 [km/h]

Creeper min speed 360 [m/h] (Option)

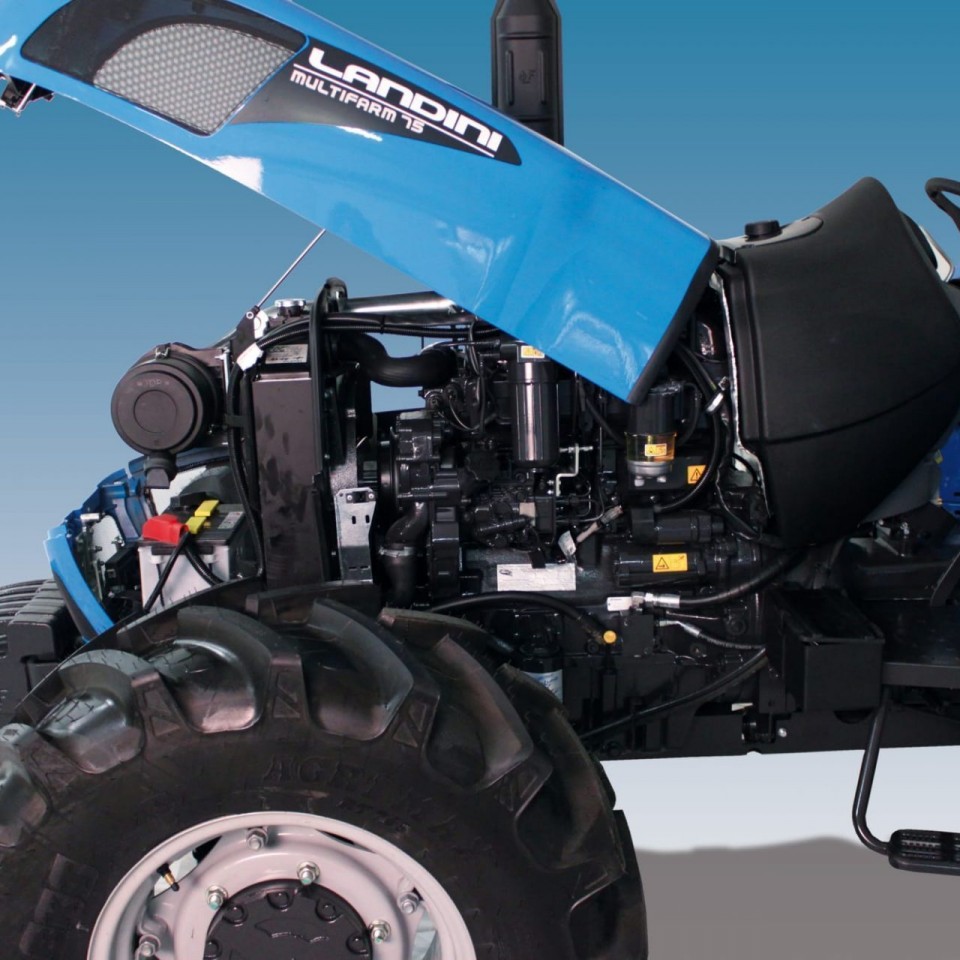

perkins 4 cyl 4-4 litres tier2 and tier3

Perkins 4 CYL 4,4 litres Tier2 and Tier3

4 cyl 4,4L Perkins engine equips all the models,with two different inlet systems,Naturally Aspired and Turbo. The power range starts from 68 to 82 HP

Documents

f_Multifarm-GB-OK.pdf
