Landini Rex4, innovative by tradition For over 30 years, the Argo Tractors Group has based its success on specialisation and resource integration; a winning strategy that has enabled Argo Tractors engineers to further enhance the already advanced features of the REX range. Incorporating cutting-edge solutions and technologies designed to meet the most exacting demands of modern farming, the new REX4 marks a breakthrough in the specialty tractor segment in terms of compact design, ergonomics, comfort and flexibility. The REX4 knows how to stand out: the sleek, dynamic lines of the hood, the lights seamlessly integrated into the front grill and the Lounge cab with its flat-deck platform give the REX4 an automotive look and feel. A contemporary design which reflects the very essence of Landini’s mission: to offer maximum innovation, productivity and comfort, as per tradition. |
|
Rex 4,undisputed king of the specialist range The REX4 range is available in cab version for the F, S, GT models. The range offers a choice of transmissions and a variety of front and rear axles providing different wheelbase sizes, ground clearances and track widths. The REX4 Cab series comes in three models to suit specific applications: F model for narrow-row orchards: ideal for work between tight orchard rows. S model for narrow-row orchards with goblet-trained trees: it features the track width of F model and the narrow cab of the V model GT model for wide-row orchard: ideal for orchards with wide row spacing and for field work. |
|
Lounge Cab: all-round visibility and first-class comfort
The tractors stylish new look and entirely redesigned cab provide the operator with a new working environment, offering improved vision, more functionality and more precise controls that make front or rear implement operation easier and quicker and, true to form, extremely high-levels of finish ensure the utmost in comfort. When used for spraying operations, the cab is also available with Protection class 4, guaranteeing total protection for the operator in a pressurized environment monitored by sensors. |
| REX 4-070 F/S | REX 4-080 F/S/GT | REX 4-090 F/S/GT | REX 4-100 F/S/GT | REX 4-110 F/S/GT | REX 4-120 F/S/GT | ||
|---|---|---|---|---|---|---|---|
| Deutz Stage 3B/Tier 4i | 2,9 TCD L4 | 2,9 TCD L4 | 2,9 TCD L4 | 2,9 TCD L4 | 2,9 TCD L4 | 2,9 TCD L4 | |
| Max. power (ISO) [HP/kW] | 70/52 | 76/56 | 90/66 | 95/70 | 102/75 | 112/82 | |
| Max. torque [Nm] | 272 | 300 | 378 | 400 | 410 | 420 | |
| Displacement / N°. of cylinders cm3 | 2900/4TA | 2900/4TA | 2900/4TA | 2900/4TA | 2900/4TA | 2900/4TA |
|

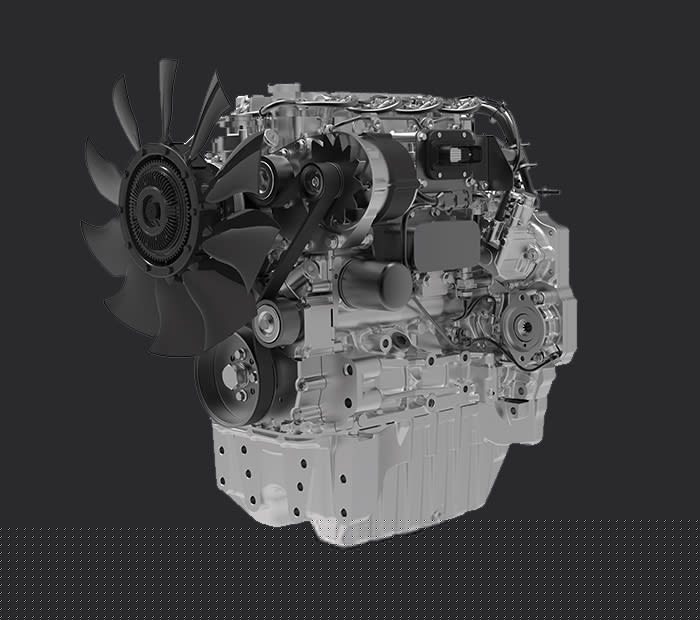

Deutz Stage 3B Tier 4 interim engines
The innovations incorporated into the REX 4 Series start with the engine, a performance-oriented, reliable 4-cylinder 2.9-liter Deutz Stage 3B (TCD L4) equipped with DOC. An Engine Memo Switch can memorize the engine speed for operator convenience. Maximum power is developed at 2200 rpm and ranges from 70 HP to 112 HP with up to 6 models per version. |
| REX 4-070 F/S | REX 4-080 F/S/GT | REX 4-090 F/S/GT | REX 4-100 F/S/GT | REX 4-110 F/S/GT | REX 4-120 F/S/GT | ||
|---|---|---|---|---|---|---|---|
| Min. Width mm | 1342/ 1342 | 1342 / 1342/1478 | 1342 /1342/ 1478 | 1342 / 1342/1478 | 1342 /1342/1478 | 1342 / 1342/1478 | |
| Wheelbase 4WD mm | 2140 | 2140 | 2140 | 2140 | 2140 | 2140 | |
| Weight 4WD Without weights Kg | 2800/2750 | 2800/2750/ 3000 | 2800 / 2750/ 3000 | 2800 / 2750/ 3000 | 2800 /2750/ 3000 | 2800 / 2750/ 3000 |
|
Versatile transmission to suit every need
The REX4 tractors feature as standard a Speed Four modular transmission with four synchronized gears and three ranges that provide 12 forward and12 reverse speeds. Transmission options include a Power Four module (Hi-Lo splitter) providing 32 forward and 32 reverse speeds, a T-Tronic three-stage powershift (high-medium-low) giving a total of 48 forward and 16 reverse speeds, and a creeper that provides speeds as low as 300 m/h at maximum engine rpm. |
|
Innovative hydraulic system for maximum flexibility
The REX4 comes with a variety of hydraulic options and configurations to offer farmers tailored solutions for their applications. The hydraulic system of the REX4 range comes standard with a double pump that supplies 50 l/min to the rear hitch and remotes and 28 l/min to the steering system. Optionally, it can be equipped with a triple pump that provides a flow rate of 44+41+28 l/m to operate, respectively, the rear hitch and remotes, the front remotes and the steering system. The tractor can be equipped with up to seven remote valves, four at the rear and three at the front. Available options include three electrohydraulic front remotes, a flow selector to control multiple outlets with a single control and a flow divider to regulate the flow rate to the remotes. The F and V models can be equipped with rear hydraulic stabilizers which control opening and closing of the lower links via two simple push-buttons. This function can be useful when attaching implements or when hitch adjustment during inter-row operation is required. |
