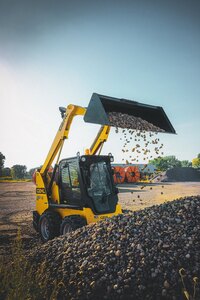

Gehl R190 GEN:2 COMPACT LOADERS |
|||||||||||||||||||||||||
|
|||||||||||||||||||||||||
|
Specifications
|
|||||||||||||||||||||||||
|
Description
|
|||||||||||||||||||||||||
|
CAPACITIES
|
|||||||||||||||||||||||||
|
Operating_Weight
3172.87 kg
Operating_Capacity_At_50%_Tipping_Load
861.82 kg
|
|||||||||||||||||||||||||
|
WEIGHT AND DIMENSIONS
|
|||||||||||||||||||||||||
|
Wheelbase
1066.80 mm
Dump_height
2387.60 mm
Bucket_Width
1676.40 mm
Ground_clearance
160.02 mm
Rollback_at_ground
28 °
Seat_to_ground_height
904.24 mm
Clearance_Circle_-_Rear
1511.30 mm
Dump_reach_-_Full_height
584.20 mm
Dump_angle_at_full_height
99 °
Overall_width_less_bucket
1574.80 mm
Overall_length_with_bucket
2446.02 mm
Overall_length_-_Less_Bucket
2446.02 mm
Overall_Height_to_top_of_ROPS
1955.80 mm
Clearance_Radius_-_Front_with_Bucket
2032 mm
Height_to_Hinge_Pin_–_Fully_Raised
3022.60 mm
Clearance_Circle_-_Front_without_Bucket
1168.40 mm
Overall_Operating_Height_-_Fully_Raised
3886.20 mm
|
|||||||||||||||||||||||||
|
PERFORMANCES
|
|||||||||||||||||||||||||
|
Travel_speed_(unladen)
12.55 km/h
Travel_Speed_with_Two-Speed_Option_-_Maximum
19.47 km/h
|
|||||||||||||||||||||||||
|
WHEELS
|
|||||||||||||||||||||||||
|
Standard_tires
10 x 16.5
|
|||||||||||||||||||||||||
|
ENGINE
|
|||||||||||||||||||||||||
|
Engine_norm
Stage IIIB, Stage V, Stage IV / Tier 4 Final
Engine_brand
Yanmar
Engine_model
4TNV98C-NMS2V
Starter_(kW)
3 kW
Net_Power_(kW)
51 kW
Battery_voltage
12 V
Gross_Power_(kW)
51.67 kW
Max._torque_/_Engine_rotation
241 Nm / 1625 rpm
|
|||||||||||||||||||||||||
|
HYDRAULICS
|
|||||||||||||||||||||||||
|
Auxiliary_Hydraulic_Pressure
207 bar
Standard_flow_-_Auxiliary_hydraulics
70.78 l/min
High-Flow_Auxiliary_Hydraulics_–_Option
113.94 l/min
High-Flow_Auxiliary_Hydraulics_Pressure_–_Option
200 bar
|
|||||||||||||||||||||||||
|
TANK CAPACITIES
|
|||||||||||||||||||||||||
|
Fuel_tank
58.67 l
Reservoir_Capacity_Hydraulics
35.96 l
|
|||||||||||||||||||||||||
|
NOISE AND VIBRATION
|
|||||||||||||||||||||||||
|
Environmental_noise_(LwA)
100 dB
Vibration_to_whole_hand/arm
< 1.53 m/s²
Whole-Body_Vibration_(ISO_2631-1)
0.96 m/s²
|
|||||||||||||||||||||||||
|
TECHNICAL FEATURES
|
|||||||||||||||||||||||||
|
Technical_Features
|
|||||||||||||||||||||||||
