Krone Swadro S | TS

KRONE side delivery rotary rakes

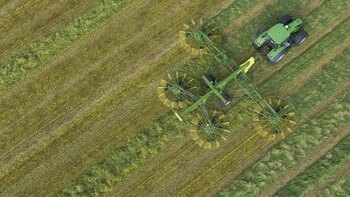

The KRONE Swadro S and TS line-up of rotary rakes offers the largest choice of side delivery rakes in the market. Our programme comprises an unmatched number of models and variants – from the single-rotor rakes for non-contiguous fields all the way up to the Swadro TS 970, the world’s most unique three-rotor rake for maximum productivity and harvester capacities.

• ­KRONE Jet Effect: Protects the sward and produces clean forage without poking into the ground
• The pull-type cardanic suspension: Optimum contouring and cleanest rakes
• ­KRONE rotor gearboxes: Combining reliability and high performance at minimal tractor power
• ­KRONE DuraMax cam track: Perfect swath presentation and boosted harvest chain efficiency
• ­KRONE Lift Tines: These tines don’t rake but lift the crop from the ground – delivering perfect results at low raw ash levels
• KRONE driveline: Mechanical drives all-round for fast changeovers and high area outputs

The ­KRONE Swadro S and TS line-up of rotary rakes offers the largest choice of side delivery rakes in the market. Our programme comprises an unmatched number of models and variants – from the single-rotor rakes for non-contiguous fields all the way up to the Swadro TS 970, the world’s most unique three-rotor rake for maximum productivity and harvester capacities.

The pull-type and cardanic design

• 3D contouring in any direction
• Best possible 3D contouring for all tines
• Clean forage, no losses

The Swadro rotor gearbox

• Hermetically sealed and maintenance-free rotor gearboxes
• Fuel-efficient gear ratio
• Permanently fluid greased

The Swadro rotor gearbox is powerful and yet frugal in terms of tractor power. Thanks to its large gear ratio, Swadro requires only low pto speeds at minimum wear. Compared to other swathing systems, Swadro rotary rakes stand out for low input power and great fuel economy.

The DuraMax cam track

• Maintenance-free
• Special Bainite hardness
• Dry-running and steep cam track with small diameter

The Swadro tine arms

• Full driveline protection
• Neighbouring discs will not collide
• Wear-free
• Quick replacement of the roll pins, lowest costs

You­ know­ it­ too­ well­ –­ foreign­ objects­ can­ cause great damage and costly repairs. KRONE SafeCut­offers­a­maximum­of­protection­and­ peace of mind. The system which comes as standard­specification­offers­a­unique­level­of­ disc protection and functionality.

The KRONE Lift Tine

• Clean forage thanks to the Lift Effect
• High work rates and no fragmentation
• Improved forage quality
• Reduced rake losses

All current KRONE Swadro models have the KRONE Lift Tines as standard specification. Kinked in two positions, these tines offer significant benefits that have been verified in KRONE field tests and a DLG Focus Test.

The bogies on the KRONE Swadro rakes

• Gauge wheels on high flotation tyres run very close to the tines
• The largest wheelbase on the market
• Adjuster changes the rotor angle across the direction of travel for optimum swaths and loss-free rakes.
• Caster steer wheels at front and rear (option) protect the sward

The wheels under the KRONE Swadro rotors never lose contact with the ground, not even the roughest terrain. The largest possible contact area and pivoting range in combination with suitable tyres ensures no blade is left on the sward and the sward is not damaged. Clean and intact swards are the cornerstone for top quality forage also from the next cut.

Extraordinary simplicity

• Mounted in the three-point linkage and offering 3.80 m to 4.60 m working widths
• nique caster-steered headstock with patented lower link couplers offers two attachment options
• A level of operator comfort and setup accuracy that is second-to-none

The Swadro S single-rotor rakes with 3.80 m, 4.20 m and 4.60 m working widths stand out for great longevity and reliability but also in terms of operator comfort and convenient setup. Their remarkable level of reliability and longevity is attributed to their durable drive components that are sourced from the KRONE high-output rakes. Also, the compact Swadro S build offers the best possible view of the rotors and the swath whilst the precise and convenient setting options make for easiest use and optimum results.

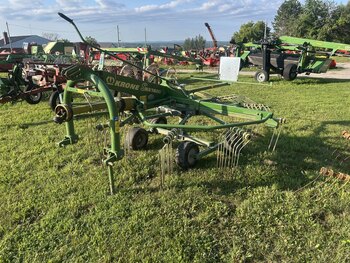

Swadro S single-rotor rakes

• Down-to-the millimetre rotor height settings and accurate scales
• Convenient curtain fold-up mechnism takes out the hard work
• Foldable tine arms feature wear-free and gapless joints

The Swadro S single-rotor rakes stand out for ease of operation. For example, work height and swath width are changed on the left side of the rake or even from the cab as an option. The tine arms are foldable and need not removing and storing into transport position so changeovers from field to road are fast and easy.

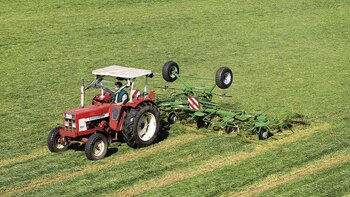

Twin-rotor side delivery model

• Single and double swathing
• Right-hand swath presentation
• Variable work width
• Hydraulic crop deflector adjustment
• 13 tine arms per rotor

Featuring as many as 13 tines, this KRONE 710/26 T twin-rotor side delivery rake not only offers excellent value for money but also the cleanest rakes. Swadro 710/26 T forms single and double swaths as well as two narrow swaths side by side.
